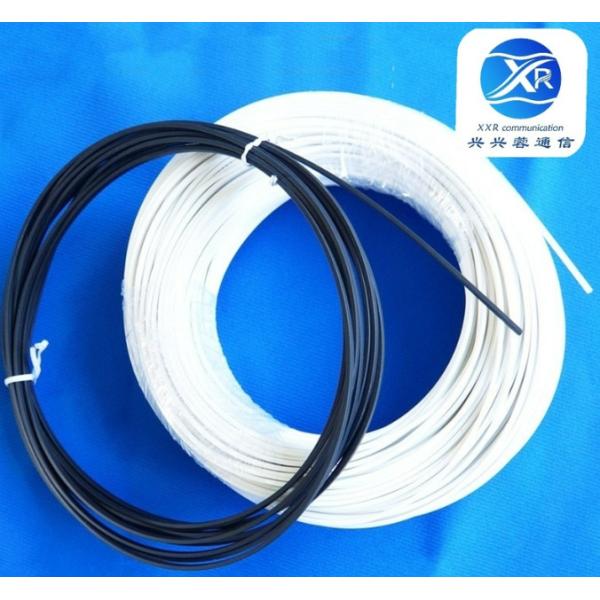

FTTH Fiber Loose Tube Hytrel Material Fiber Optic Buffer Tube

Brand Name : XXR

Model Number : Hytrel

Certification : SGS

Place of Origin : China

MOQ : 1 reel

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000 Kilometer/Kilometers per Month

Delivery Time : 5-7 days

Packaging Details : 2reels/pallet

Name : Buffertuber

Material : Hytrel

Color : white,orange,yellow, green etc.

Wall thickness : 0.2MM

I.D : 0.5 MM

OD : 0.9MM

Use : FTTH

Suitable for : bare fiber

Contact Now

FTTH Fiber Loose Tube , Hytrel Fiber Optic Buffer Tube

Features:
1. Achieve the highest flame retardant grade.
2. It has the characteristics of high strength, high elasticity, oil resistance, acid and alkali resistance, high temperature resistance, radiation resistance, excellent dynamic mechanical property, no acid gas release, no corrosion of equipment, personal health and safety, etc.
3. Perfect performance can be maintained for a long time at 85°C.

Application:
1. Used to protect all kinds of single-coated optical fiber or optical fiber ribbon.
2. Used as a protective tube for optical transmission equipment and exposed optical fibers at the end of components.
3. Protect bare fiber optics from mechanical damage during fiber handling and any subsequent conditions.
4. Effectively prevent water vapor, fuel, acid, alkali and solvents from eroding the optical fiber, and ensure the transmission performance of the optical fiber.

Fiber Loose Tube,also called buffertuber, it is a polypropylene or nylon sleeve that protects the optical fiber from internal stress and external lateral pressure.

Technical data:

Tensile strength	13.6 Mpa
Elongation at break	500%
Tear strength	53.2KN/m
Heat shrinkage	≤0.5%
OD	0.9±0.05 mm
ID	0.45±0.03 mm
Working temperature	－40 ℃ - +85 ℃

FTTH Fiber Loose Tube Hytrel Material Fiber Optic Buffer Tube

Product Tags:

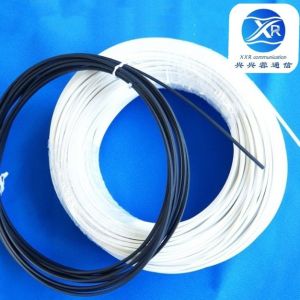

FTTH Fiber Loose Tube Hytrel Material Fiber Optic Buffer Tube Images
